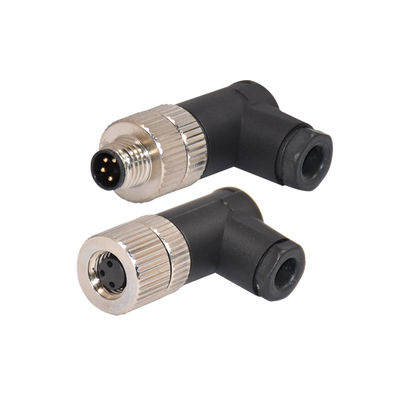

Waterproof M8 3Pin 4Pin 5Pin 6Pin 8Pin Male Female Screw Circular Assembly Connector
Product Features
- M8 circular connector with M8*1.0 screw locking
- Easy quick connect and disconnect coupling
- Pin configurations: 3, 4, 5, 6, 8 positions
- A, B, D coding available
- Shield and un-shield version available with metal or plastic housing
- Meets IP67/IP68 waterproof requirements
- Temperature Range: -25°C ~ +85°C
- PG7 type for 3~6mm cable
Technical Specifications
| Product Name |
Waterproof M8 Assembly Connector |
Gender |
Male and Female |
| Pin |
3/4/5/6/8 pin |
Orientation |
Straight/Right Angle/Y T type |
| Connector Body |
PA66+GF |
Contact Material |
Phosphorus copper with gold plated |
| Shell Material |
Plastic(TPU)/Metal(CuZn) |
Screw/Nut Material |
Brass with nickel plated |
| Cable Jacket |
PVC/PUR |
Rated Voltage |
30V for 5/6/8 pin
60V for 3/4 pin |
| Rated Current |
1.5A/2A/3A/4A |
Certificate |
ISO9001, CE, IP68, ROHS |
| Protection Level |
IP67/IP68 waterproof |
Temperature Range |
-25℃~85℃ |
| Contact Resistance |
≤10mΩ |
Mechanical Operation |
>500 mating cycles |
Packaging & Delivery
Packaging:
1. Our standard packaging:
- About 50pcs put in a plastic box
- Wrap the product with thin film along with the plastic box
- Put all boxes in a small carton (46*30*30 cm)
2. OEM/ODM package is available.
Shipping:
According to customer request, we can choose different convenient shipping methods.
