PCB Mount M12 Electrical Wire Connector Angeled Panel Male 8 12 17 Pin
Product Specifications
| Attribute |
Value |
| Type |
DIN |
| Application |
Automotive Industrial Aviation LED Solar |
| Gender |
Male Female |
| Pins |
3 4 5 8 12 17 pin Connector |
| Rated Voltage |
250V |
| Rated current |
4A |
| Protection level |
IP67/IP68 Connector |
| Connector type |
Aviation Connectors |
| Temperature Range |
-40°C to +125°C |
| Brand |
RENHOTEC |
| Connector Insert |
TPU/PA |
| Connector Contacts |
Brass with gold plated |
Product Overview
High-quality M12 Connector with 90° angle design, available in A, B, C, D, and X coding types with 3, 4, 5, 8, 12, or 17 pin configurations. Suitable for PCB sensor applications with male and female plug socket options.
Key Features
- Durable construction with brass contacts gold plated for superior conductivity
- Wide temperature range from -40°C to +125°C
- IP67/IP68 protection rating for waterproof applications
- Multiple pin configurations available (3, 4, 5, 8, 12, 17 pin)
- Suitable for automotive, industrial, aviation, LED, and solar applications

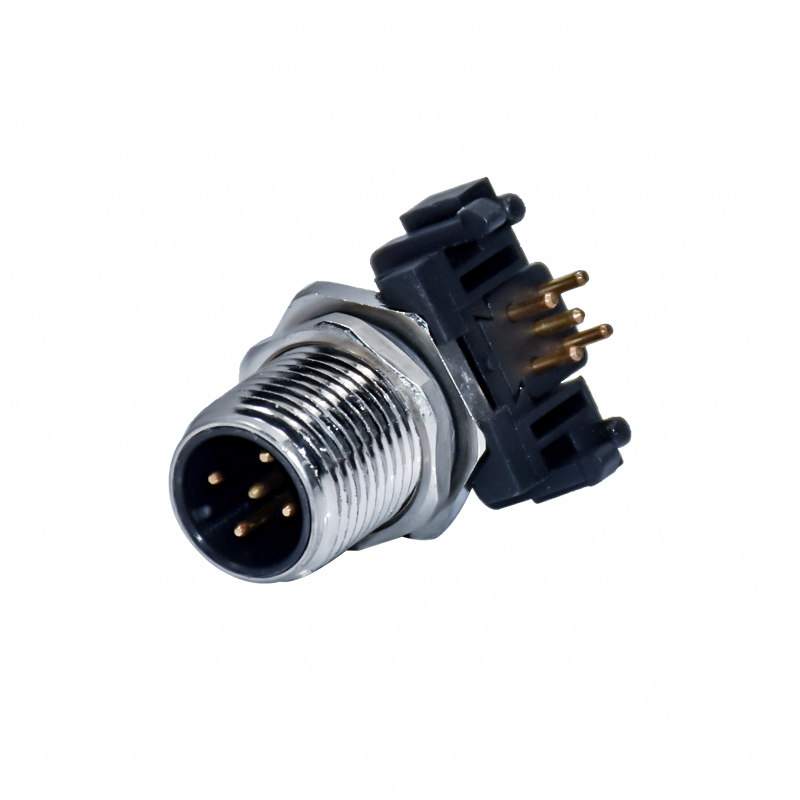

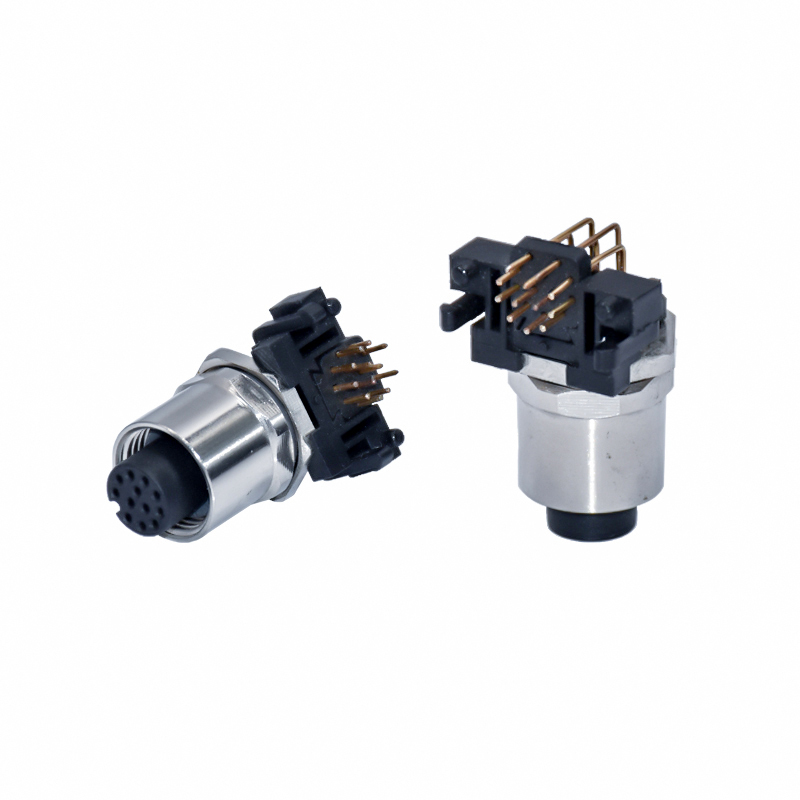

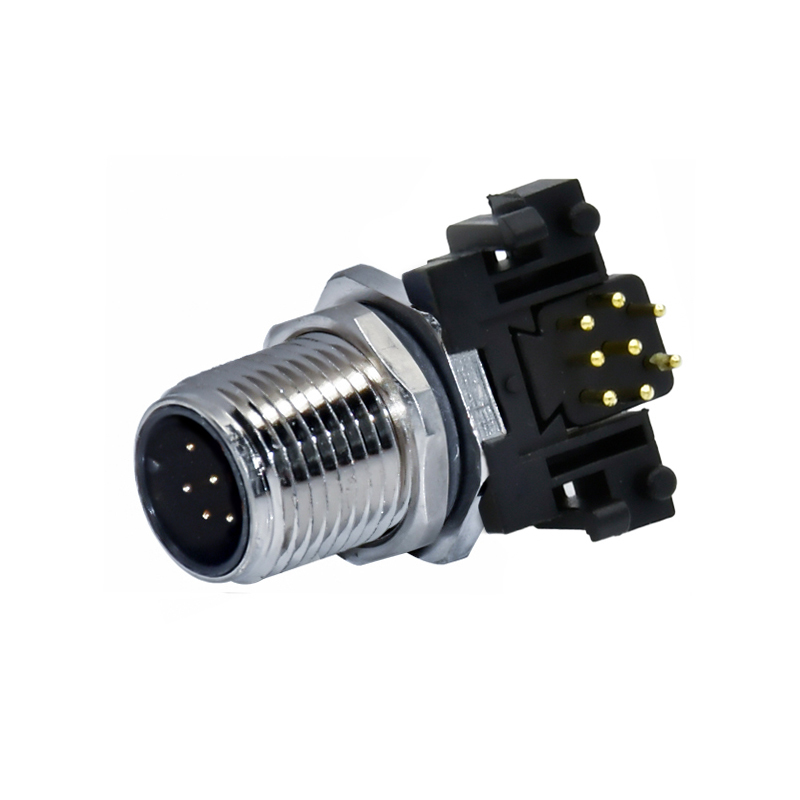

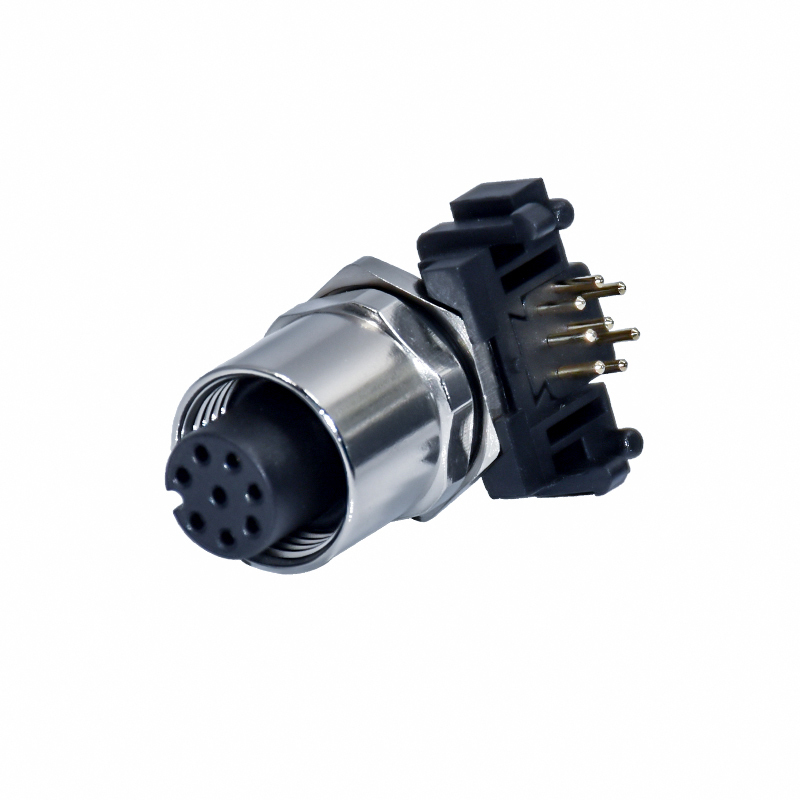

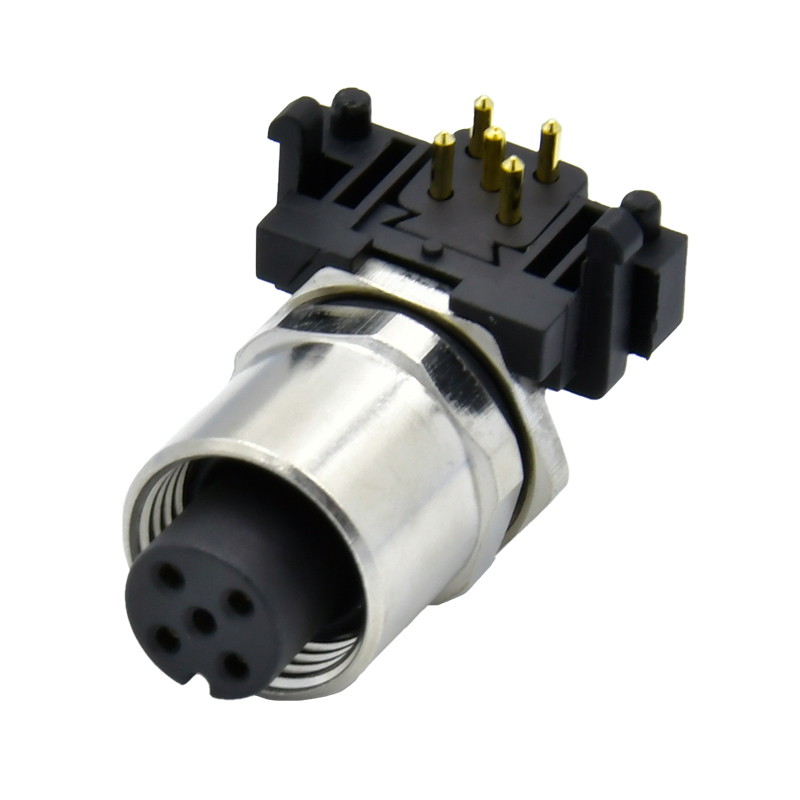

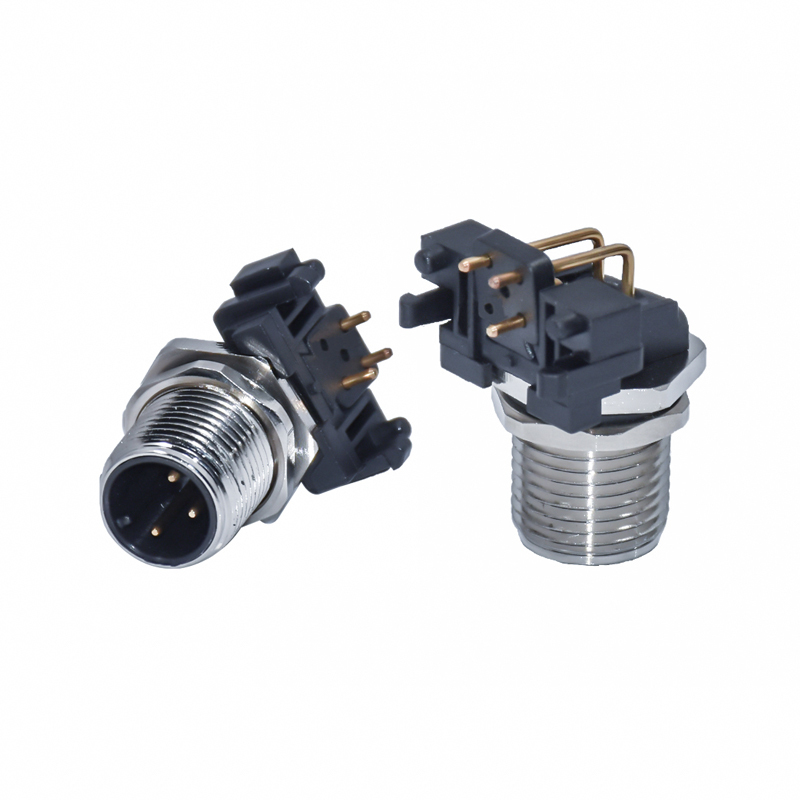

Product Images
