IEC 61076-2-104 Compliant M12 Waterproof Connector with Front Panel Mount and -25℃~85℃ Temperature Range

10
MOQ
$1.99-3.50
Prix
IEC 61076-2-104 Compliant M12 Waterproof Connector with Front Panel Mount and -25℃~85℃ Temperature Range
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Genre: Femme / mâle
Type de connecteur: Support de panneau
Nombre d'épingles: 3/4/5/8/12/17 BROCHES
Type de montage: Termination de la soudure
Mécanisme de verrouillage: Avant / arrière attaché
Tension nominale: 250V pour 3/4 broches, 60V pour 5 / 6pin, 30V pour 8/12/17pin
Courant nominal: 4A pour 3/4/5/6 broches, 2A pour 8 broches, 1A pour 12/17 broches
Niveau de protection: IP67 / IP68
Plage de température: -25°C à 85°C
Matériau de contact: AU (placage d'or)
Matériel de logement: Nickel en laiton / zinc plaqué en nickel
Longévité mécanique: > 500 cycles d'accouplement
Fermeture à vis: M12 * 1.0 / M16 * 1.0
Codage: A/B/D
Couleur: Laiton / zinc ou personnalisé
Mettre en évidence:

IEC 61076-2-104 M12 Waterproof Connector

,

-25℃~85℃ M12 Panel Mount Connector

,

Front Panel Mount M12 Circular Connector
Informations de base
Lieu d'origine: Guangdong, Chine
Nom de marque: Rigoal
Numéro de modèle: M12
Conditions de paiement et expédition
Description de produit

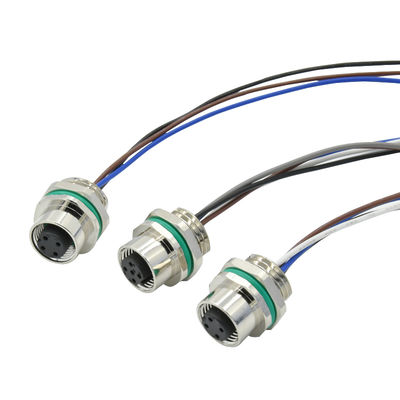

Waterproof M12 Female Front Panel Mount Connector with Pre-assembled Wires Pigtail
IEC 61076-2-104 Compliant M12 Waterproof Connector with Front Panel Mount and -25℃~85℃ Temperature Range 0
Product Overview
High-quality M12 panel mount waterproof connector with pre-assembled wires pigtail, designed for industrial applications requiring reliable connections in harsh environments.
Key Features
  • Connector Series: M12
  • Panel mount waterproof design according to IEC 61076-2-104
  • M12 circular connector with M12*1.0/M16*1.0 screw locking
  • Waterproof rating: IP67/IP68
  • Coding options: A/B/D
  • Available in Female and Male configurations
  • Panel mount design
  • Material options: Brass/Zinc or customized
  • Operation temperature range: -25℃~+85℃
Technical Specifications
Type ADAPTER
Application Automotive/Power/Sensor/Electrical Equipment
Gender Male and Female
Product name M12 waterproof panel mount connector
Connector type Male female Terminals
Rated Current 1A for 12pin, 2A for 8pin, 4A for 3/4 5/17pin
Rated Voltage 30V for 12pin, 60V for 8pin, 250V for 3/4 5/17pin
Contact material Au (gold plating)
Material of housing Brass/Zinc diecasting nickel plated
Protection level IP67/IP68 Waterproof
Mechanical operation >500 mating cycles
Temperature Range -25℃~85℃
Certificate ISO9001/CE/ROHS

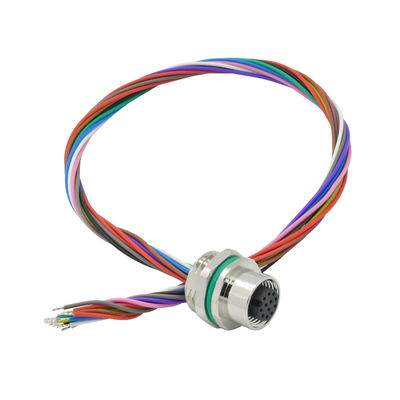

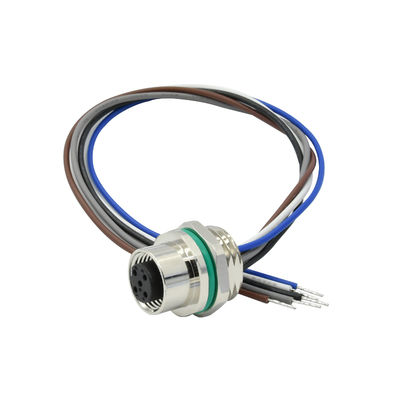

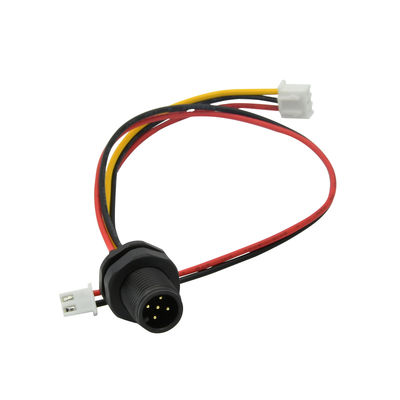

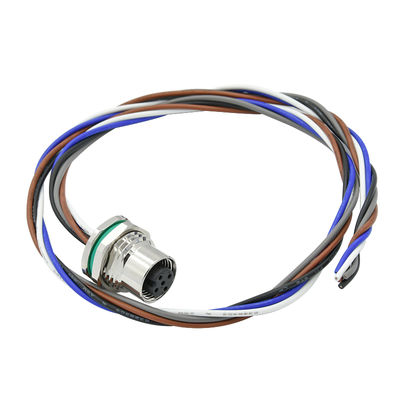

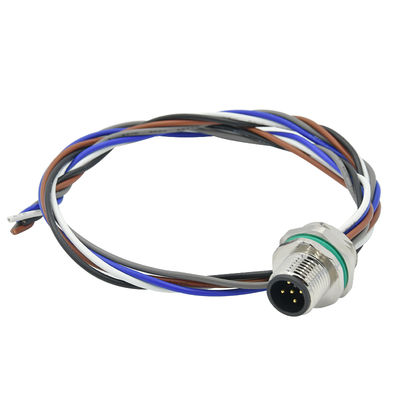

Product Images
IEC 61076-2-104 Compliant M12 Waterproof Connector with Front Panel Mount and -25℃~85℃ Temperature Range 1 IEC 61076-2-104 Compliant M12 Waterproof Connector with Front Panel Mount and -25℃~85℃ Temperature Range 2 IEC 61076-2-104 Compliant M12 Waterproof Connector with Front Panel Mount and -25℃~85℃ Temperature Range 3 IEC 61076-2-104 Compliant M12 Waterproof Connector with Front Panel Mount and -25℃~85℃ Temperature Range 4 IEC 61076-2-104 Compliant M12 Waterproof Connector with Front Panel Mount and -25℃~85℃ Temperature Range 5 IEC 61076-2-104 Compliant M12 Waterproof Connector with Front Panel Mount and -25℃~85℃ Temperature Range 6
Packaging & Delivery
IEC 61076-2-104 Compliant M12 Waterproof Connector with Front Panel Mount and -25℃~85℃ Temperature Range 7 IEC 61076-2-104 Compliant M12 Waterproof Connector with Front Panel Mount and -25℃~85℃ Temperature Range 8
Packaging Details
  • Standard packaging: Each piece in a small waterproof PE bag, then in a carton
  • Approximately 200 pieces per carton (46×30×30 cm)
  • OEM/ODM packaging available
  • Custom packaging options according to customer requirements
Shipping Options
Flexible shipping methods available based on customer requirements.
Company Profile
IEC 61076-2-104 Compliant M12 Waterproof Connector with Front Panel Mount and -25℃~85℃ Temperature Range 9 IEC 61076-2-104 Compliant M12 Waterproof Connector with Front Panel Mount and -25℃~85℃ Temperature Range 10

Rigoal was founded in 2013 and specializes in producing various waterproof cables & connectors including M8, M12, M16, M23, and D-SUB. Our products are primarily used in sensors, industrial equipment, transportation facilities, medical devices, LED displays, outdoor advertisements, communication devices, wind energy devices, vessel industrial, and car electronics industry.

Our products meet or exceed world-famous brand standards. We adhere to the philosophy of "Customer Foremost, Service First, Quality First" and export to developed industrial countries worldwide including America, Austria, Sweden, Belgium, Germany, Netherlands, UK, Spain, and Asian markets.

We have established agents and customers globally and are highly regarded for our quality products and service. We welcome new partnerships and look forward to creating a brilliant future together.

Frequently Asked Questions
Who are we?
Based in Guangdong, China, established in 2014, we serve customers worldwide including Western Europe (18%), North America (13%), Oceania (13%), South America (10%), Eastern Asia (10%), Northern Europe (10%), Southern Europe (10%), and other regions. Our company employs 101-200 people.
How can we guarantee quality?
  • Pre-production samples before mass production
  • Final inspection before shipment
What can you buy from us?
Waterproof Connectors, Waterproof Connector Cables
Why should you buy from us?
Rigoal Connector specializes in designing and manufacturing M8, M12, M16, M23, D-SUB/USB waterproof connectors and cables, primarily for applications in sensors, industrial equipment, transportation facilities, medical devices, and LED displays.
What services can we provide?
Delivery Terms:
FOB, CFR, CIF, EXW, FAS, FCA, CPT, DDP, DDU
Payment Currency:
USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY
Payment Type:
T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow
Languages Spoken:
English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, Italian
